GPU Molecular Dynamics — Local Pipeline Demo

01 What we simulated

Three representative systems spanning explicit solvent (full water + PME) and implicit solvent (Generalized Born). All run on the CUDA platform with a Langevin Middle integrator, 2 fs timestep, 300 K.

System	Solvent	Atoms	Force field	Length	Wall time	Throughput
TIP3P water box 2 nm cube	explicit · PME	774	AMBER14 / TIP3P	10 ps	1.5 s	633 ns/day
Trp-cage (TC5b) PDB 1L2Y · 20 res	implicit · GBn2	304	ff14SB + GBn2	500 ps	44.7 s	967 ns/day
Alanine dipeptide Ace-Ala-Nme	implicit · OBC	22	AMBER / OBC	2 ns	91.8 s	1882 ns/day

Read this as a proof of concept. The GT 1030 is an entry-level display card (2 GB, ~384 CUDA cores). The point is that the whole pipeline runs end-to-end on commodity hardware — the identical scripts scale unchanged to a production GPU (A100 / RTX 4090) or an HPC cluster, where throughput is 10–50× higher.

02 Live trajectory

Trp-cage over 500 ps of implicit-solvent dynamics (100 frames, backbone aligned). Cartoon coloured N→C terminus. The mini-protein stays folded — thermal breathing, not unfolding.

Loading trajectory…

Trp-cage (1L2Y) · implicit solvent · 500 ps @ 300 K · 100 frames · CUDA

03 Analysis

Every run is fully reproducible — trajectories analyzed with MDTraj, figures generated from the raw output.

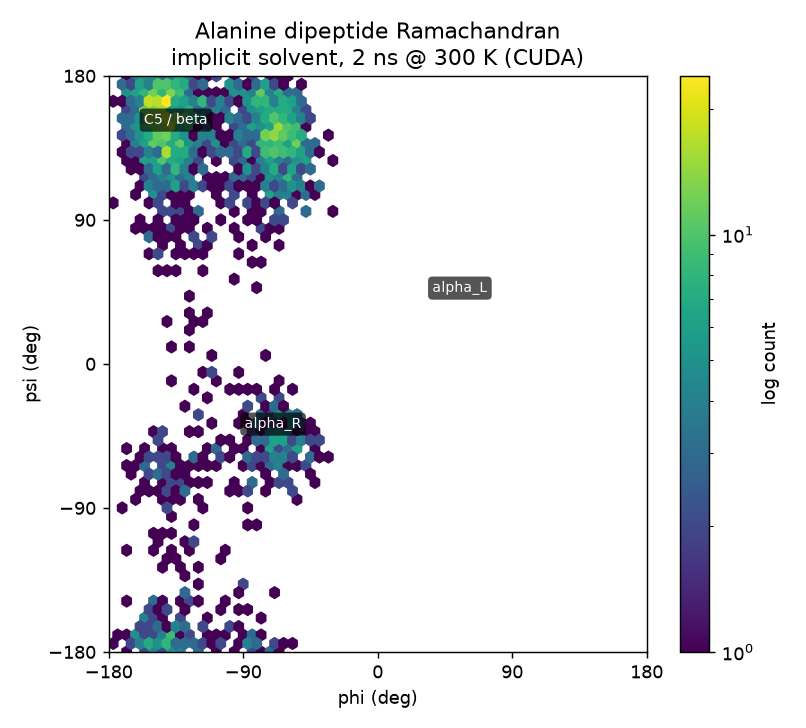

Alanine dipeptide Ramachandran plot — **Ramachandran map** — alanine dipeptide, 2000 frames. Density concentrates in the **β/C5** and **α_R** basins; the left-handed α_L region is essentially empty. Textbook backbone conformational sampling.

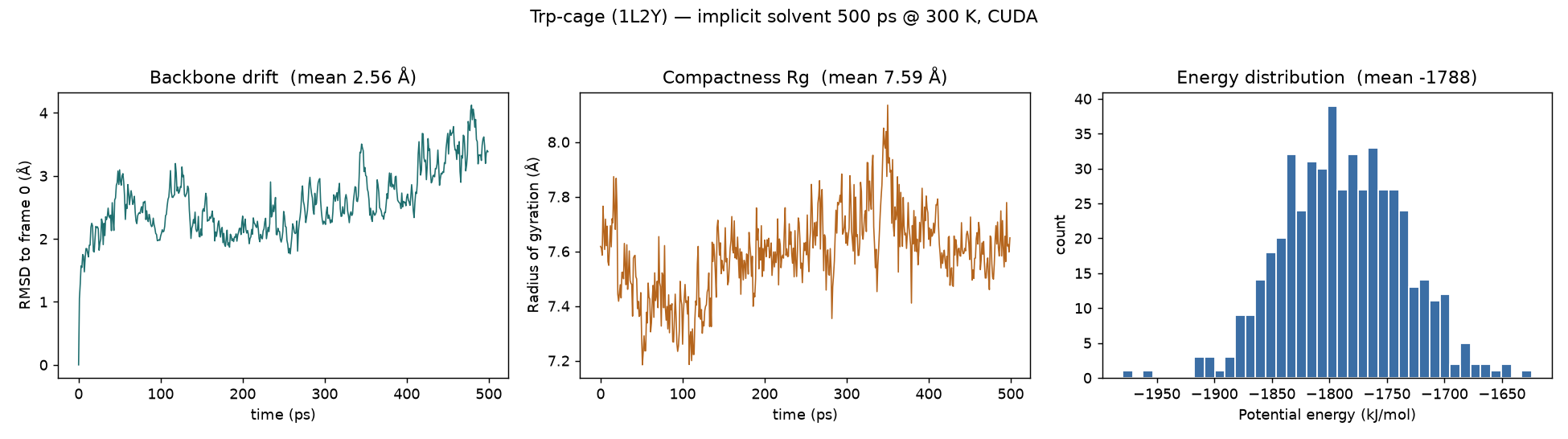

Trp-cage RMSD, radius of gyration and energy — **Trp-cage stability** — backbone RMSD mean 2.56 Å, radius of gyration 7.59 ± 0.15 Å (stays compact), potential energy near-Gaussian. The protein is well-equilibrated and folded throughout.

04 Performance — GPU vs CPU

Same system (2661-atom TIP3P water box, PME, 3000 production steps), three OpenMM compute platforms. CUDA > OpenCL > CPU, as expected.

CUDA

218.7 ns/day · 2.3×

OpenCL

195.5 ns/day · 2.0×

CPU

95.5 ns/day · 1.0×

On this entry-level GPU the CUDA speed-up over multi-core CPU is a modest 2.3×. On a production GPU the same benchmark separates by one to two orders of magnitude — the value of the GPU path grows sharply with system size.

05 Methods & honest notes

Engine: OpenMM 8.4, CUDA platform, mixed precision.
Integrator: Langevin Middle, 2 fs, 300 K, 1 ps⁻¹ friction.
Explicit: TIP3P water, PME electrostatics, 0.9 nm cutoff, H-bond constraints.
Implicit: Generalized Born (GBn2 / OBC), no periodic box — fast conformational sampling.
Prep: PDBFixer (missing atoms, protonation at pH 7); analysis with MDTraj.

What implicit solvent buys and costs. Replacing thousands of explicit waters with a GB continuum makes small-protein sampling fast and cheap — but it drops explicit water structure (bridging waters, discrete H-bonds, viscosity). We use it for exploration; explicit solvent remains the reference for quantitative work.
